Carbon Molecular Sieve Nitrogen Generation

What the CMS Does Inside a PSA Nitrogen Generator

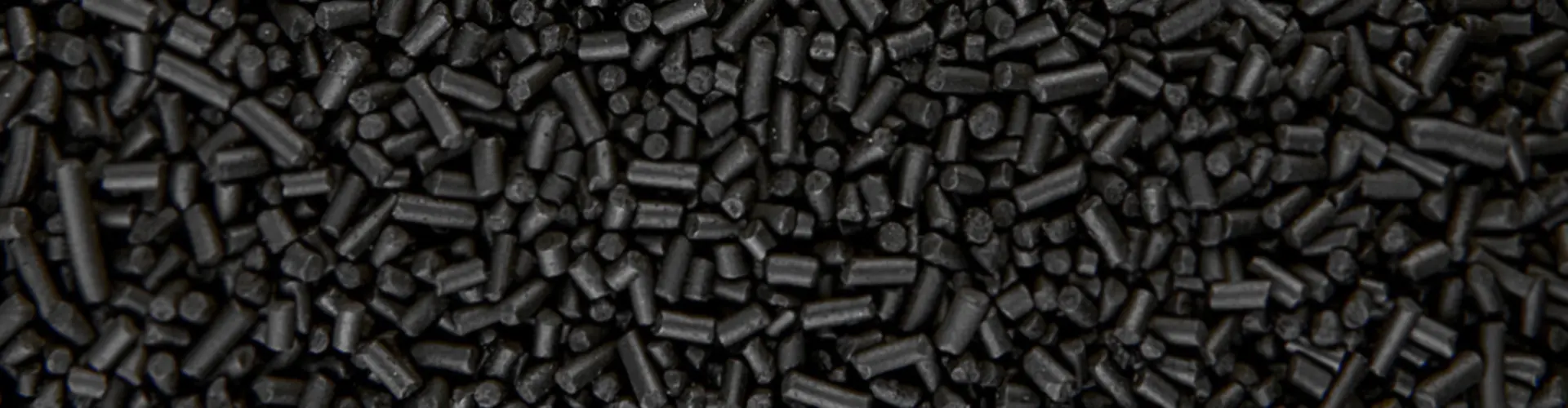

A PSA nitrogen generator is a simple machine built around one demanding component. Compressed air is dried and filtered, then passed into vessels packed with carbon molecular sieve. Oxygen enters the pore network far faster than nitrogen does, so the gas leaving the outlet is nitrogen rich, and the vessels alternate through a pressure swing adsorption cycle so supply never stops.

What Actually Sets Nitrogen Purity in Service

Purity is often treated as a property of the adsorbent alone. In a running generator it is the outcome of several variables, and the adsorbent is only one of them. When purity drifts, these are the variables to work through in order.

Variable	Why it moves purity	Direction of the effect
Adsorption step length	The separation is a race. Stop too late and nitrogen has begun entering the pores	Longer step raises output but lowers purity. Shorter step does the reverse
Feed pressure	Drives how much oxygen the bed takes up during the step	Falling pressure reduces uptake, so residual oxygen in the product rises
Feed temperature	Adsorption capacity falls as gas temperature rises	A hot compressor room in summer lowers purity at unchanged settings
Product draw rate	Sets how hard the bed is pulled and how long the gas dwells in it	Drawing above design flow always costs purity, immediately
Condition of the bed	Contamination and fines reduce the working micropore volume	Gradual, one directional loss that cycling does not recover
Valve sealing and timing	A leaking or late valve lets feed air short circuit the sequence	Sudden, often mistaken for adsorbent failure

The practical point is that the last two look identical on a purity analyser and have completely different costs. Checking valve timing and feed conditions before condemning a bed is the cheapest diagnostic step available.

Running a Generator Above Its Design Point

Most generators eventually get asked for more than they were sized for, usually because production grew around them. It is worth understanding what that actually costs, because the machine will appear to comply.

Ask for more flow and the gas spends less time in contact with the carbon, so oxygen has less opportunity to be taken up and purity falls at the outlet. Ask for higher purity instead and the control system shortens the adsorption step to stop before nitrogen follows oxygen into the pore, which means more cycles per day, and the purge gas spent on each regeneration is paid more often. Recovery falls, the compressor runs longer for the same delivered nitrogen, and the bed ages through its cycle count faster than the calendar suggests.

Neither effect triggers an alarm. They appear as a rising electricity bill and a bed that seems to have failed early, which is why the purity specification is worth settling against what the process genuinely needs rather than against what would be comfortable.

Failure Modes and What They Point To

A CMS bed rarely stops working suddenly. It degrades in patterns, and the pattern usually identifies the cause.

What you observe	Most likely cause	Where to look first
Purity falls gradually over months and cycling does not bring it back	Moisture accumulating in the micropores, which a pressure swing cannot remove	Dryer performance and drain traps, then bed replacement after contamination
Purity drops and the bed never performs again, often after a single event	Oil carryover coating the carbon and blocking the pore mouths	Compressor condition and the final oil removal filter
Rising pressure drop across the vessel	Fines forming and packing down within the bed	Loading method and bed support, covered by snowstorm filling and compression pads
Dust reaching downstream filters or valves	Attrition, usually from an unsupported or settled bed	Ash and dust emission in the vessel
Purity swings between cycles rather than drifting	Valve timing or sealing, not the adsorbent	Cycle controller and valve actuation before anything else
Bed level dropped below the vessel fill line	Settling and compaction over service	Topping up rarely restores performance. Maintaining and loading CMS

Choosing CMS for an Existing Generator

Replacing a bed is not the same problem as specifying a new plant. The vessel dimensions, the cycle the controller runs, and the purity the process was validated on are all fixed. The grade has to fit them rather than the other way round.

1. Start from the cycle, not the datasheet. A generator built around a fast cycle needs a grade that gives up its oxygen quickly during regeneration. A slower cycle can use a grade tuned for capacity instead.
2. Match the pellet to the vessel. Bed depth and diameter set the pressure drop the compressor has to overcome, and a pellet that suits a tall narrow vessel is not the one for a short wide one.
3. Be honest about the inlet air. If the previous bed failed to contamination, loading the same grade into the same untreated air produces the same outcome.

The four SorbiTech grades exist to cover that range: CMS 260L for compact and mobile units, CMS 350KT for mid range industrial plants, CMS 420KT for higher throughput and elevated purity, and CMS 450HP where the specification is tightest, set against each other on the CMS grades comparison.

CMS for OEM Nitrogen Generators

Most generators in service were built by an equipment manufacturer rather than assembled on site, and a replacement bed has to suit the vessel and cycle that manufacturer designed. Grade selection and loading differ between platforms such as Generon, Atlas Copco NGP and NGP+ and Parker units.
